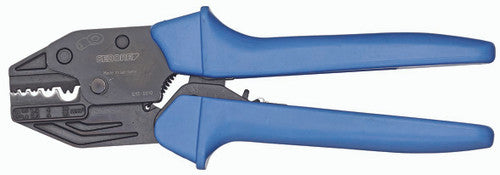

Gedore Crimp Wrench for Cable Lugs - 2836858

A Crimp Wrench is a specialized tool designed for securely crimping and fastening connections, particularly in electrical and mechanical applications. This versatile wrench provides the precise force needed to compress crimp terminals or fittings, ensuring a strong, reliable connection.

Features:

• For non-insulated contacts with closed crimping sleeve (W pressing) up to 16 mm sq. / AWG 6 and tubular cable lugs up to 10 mm sq. / AWG 6
• Easy to handle
• Releasable positive locking
• Kind-to-hands formed handles
• Gedore special steel, gun-metal finish
• Application Range: 1: 0.1-0.35 mm sq., 26-22 AWG 2: 0.5-1.0 mm sq., 20-18 AWG 3: 1.5-2.5 mm sq., 16-14 AWG 4: 4.0-6.0 mm sq., 12-10 AWG 5: 10.0-16.0 mm sq., 8-6 AWG

Specifications:

• Cable Cross Section(mmA sq.): 0.1 - 16
• Design Non-Sparking: Nein
• Material: Steel
• Weight: 1.21 lbs
• Nominal Length: 220mm
• Nominal Width: 80mm
• Total Length: 220mm
• Total Width: 80mm
• Wire Gauge Awg: 26-6
